With the special technology developed by Hande, the light color fabric can improve the heat reflection performance, while still can control more visible light into the room, effectively and efficiently reduce glare, increase the transparency clarity, and bring excellent visual comfort effect.And helps to improve the energy efficiency of buildings.
* Excllnt Glare control, Up to 98% of visible light blocked (Tv=2%)
* Excellent solar prolection, Up to 78% of solar rflection (RS=78%,SHG-C=0.10)
* Basket Weave 2X2,The classic and popular style of weaving 4 COLORS,2 STYLES (Interior and Exterior), 4 OPENNESS FACTOR
* Available In 2 Standard Widths: 250cm and 300cm
* The customizable Maximum Width is 410cm
* COORDINATED RANGE WITH A VARIETY OF OPENNESS FACTORS (1%,3%, 5% and 10%) To Optimize Solar Protection In Al Applications, Maintaining a Consistent Design Aesthetic
* CVE Excellent MECHANICAL RESISTANCE And Dimensional Stability For Large Roller Blinds
* Health & Safty: Conforms To Standard Requirements For Buildings Open To The Public
* Excellent digital printing medium for custom designs

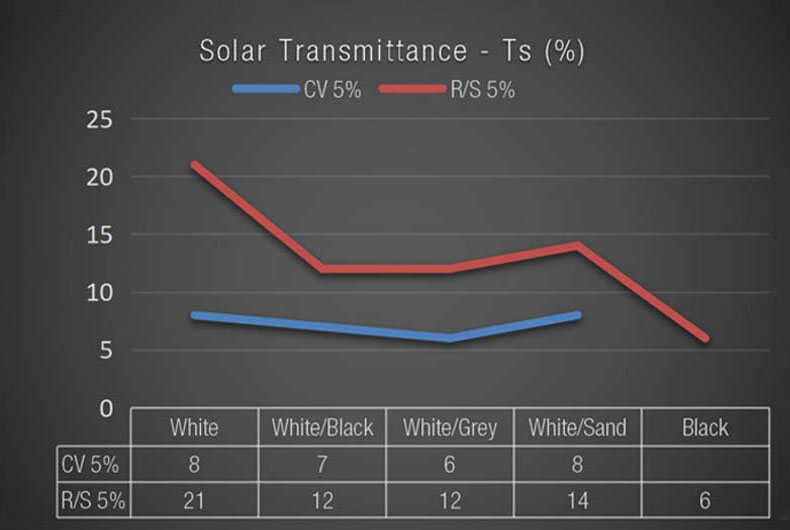

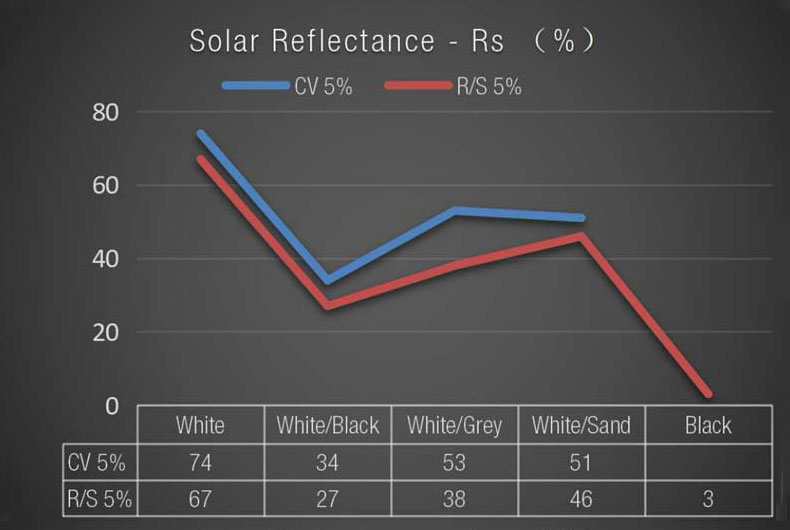

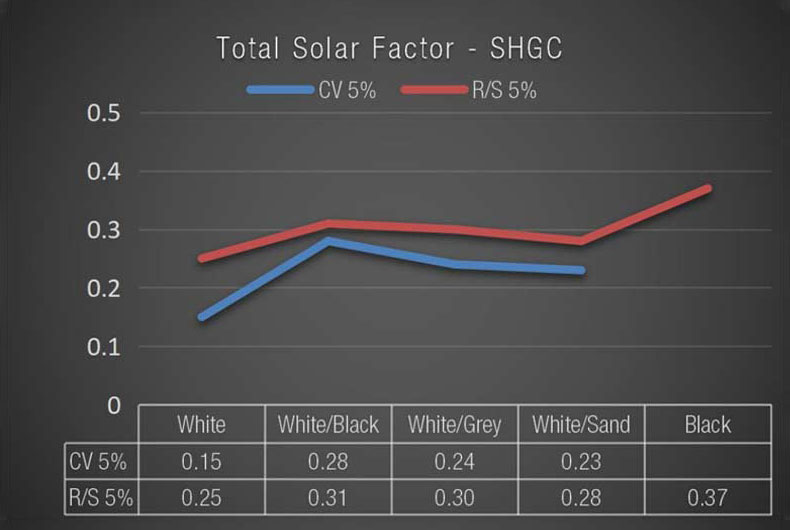

From comparison of Optical and thermal factor, Clear Vision White will reflect more sloar heat (Rs=74, Black Rs=3)，and also can achieve the same effect of glare control as black fabric (Tv=8， Black Tv=3) , It solves the problem of combining solar reflection and glare control.
In the same scene and under the same light intensity, when comparing the light blocking effects of ordinary sunscreen fabric and our clear vision fabric, the effect of clear vision is much better than the ordinary fabric.
White/White
White/Sand
White/Grey
White/Black
White/White
White/Sand
White/Grey
White/Black
Stucco
Black/Grey
Black/Pearl
Black/Bronze
Black/Black
| Fire, Smoke Classification |
FR (US) - NFPA 701 TM#1 B1(CN) - GB17591 |
BS (GB) - 5867 Part2 TypeB B1(DE) - DIN4102 |
| Health & Safety |
Oeko-tex Standard 100 class IV MIF Certificate EN71 Part 3:1994 AATCC112-2014 |
Greenguard® Gold RoHS Directive (EU)2015/863 GB18586 - 2001 |
| Bacterial & Fungal Resistance |
ASTM G21-15 0 Grade None fungi growth ASTM E 2180-07 Reduce more than 99.9% of bacteria |
|
| Colour fastness to light |
Grade 8 ISO105 B02:2014 ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp |
|
| Warranty | 5 Years | |
| STYLE | CV01 | CV03 | CV05 | CVE05 | |
| Composition | 22% Polyester + 78% PVC | 25% Polyester + 75% PVC | |||
| Openness Factor | ≈1% | ≈3% | ≈5% | ≈5% | |
| UV Screen | Up to 99% | Up to 97% | Up to 94% | Up to 95% | |
| Width | inch | 98"-118" | 98"-118" | 98"-118" | 98"-118" |
| cm | 250-300 | 250-300 | 250-300 | 250-300 | |
|
Weight (ISO 2286-2) |
oz/yd2 | 14.15±5% | 13.46±5% | 12.97±5% | 17.64±5% |
| g/㎡ | 480 ± 5% | 460 ± 5% | 440 ± 5% | 600 ± 5% | |
|
Thickness (ISO 2286-3) |
inch | 0.022 ± 5% | 0.022 ± 5% | 0.020 ± 5% | 0.030 ± 5% |
| mm | 0.55 ± 5% | 0.56 ± 5% | 0.52 ± 5% | 0.76 ± 5% | |
| MECHANICAL RESISTANCE | |||||
|
Breaking (ISO 13934-1) |
Warp | ≥1750 N/5cm | ≥1700 N/5cm | ≥1430 N/5cm | ≥2640 N/5cm |
| Weft | ≥1250 N/5cm | ≥1400 N/5cm | ≥1420 N/5cm | ≥2060 N/5cm | |
|
Tear (ISO 4674) |
Warp | ≥ 95 N | ≥ 90 N | ≥ 80 N | ≥230 N |
| Weft | ≥ 70 N | ≥ 70 N | ≥ 85 N | ≥210 N | |
|
Packing (Roll Length) |
32.8 yards | 32.8 yards | 32.8 yards | 32.8 yards | |
| 30 lm | 30 lm | 30 lm | 30 lm | ||
